Power SupplyType: 12 V / 4 A DC or PoE+
PoE+: IEEE 802.3at
VoIPSupported Protocols: SIP2.0, SIPS, DHCP opt. 66, SMTP, SNMP, TR069, 802.1x, RTSP, RTP, SRTP, TFTP, HTTP, HTTPS, Syslog, ONVIF
InterfacesLAN: 10/100/1000BASE-TX with Auto-MDIX, RJ-45
Recommended Cabling: CAT6 with MPTL
Active Switch Output: 12 V / 0.6 A DC
Passive Switch: SSR NO up to 30 V / 1A AC/DC
Inputs: 3; in passive/active mode (-30 V to +30 V DC)
VBus connector: yes
OSDP internal: yes (additional module combined with RFID reader)
Wiegand internal: yes (additional module combined with RFID reader)
Tamper Switch: Mechanical (additional module)
Audio Microphone: 2 integrated
Amplifier: 10 W / 4 Ω
Speaker: 10 W / 4 Ω
Sound Pressure Level (SPL Max): 94 dB (for 1 kHz at 1 m)
Line Out: N/A
Induction loop: Yes (internal module)
Volume Control: adjustable with automatic adaptive mode
Full Duplex: Yes (AEC)
Speech transmission index (STI): 0.89
Protocols: RTP/RTSP/SRTP
Codecs: G.711, G.729, G.722, L16/16kHz
Signalling protocol: SIP (UDP, TCP, TLS)
Camera & VideoSensor sensitivity : 14000 e¯/Lux-sec
Focal Lenght: 1,935mm
View Angle: 133° (H), 112° (V)
Infrared Light: yes
WDR: yes
Minimal Illumination: 0,1 lux without IR illumination
Protocols: RTP/RTSP/SRTP/HTTP, ONVIF v2.2 profile S and T
Codecs: H.264, H.265, MJPEG, Zipstream
Resolution H.264, H.265: max. 2560 x 1920
Frame rate H.264, H.265: max 30 fps @max. resolution
Resolution MJPEG: max. 1280 × 960
Frame rate MJPEG: max 15 fps @max. resolution
External camera H.264: Max. 720p (1280 x 720) @ 30fps

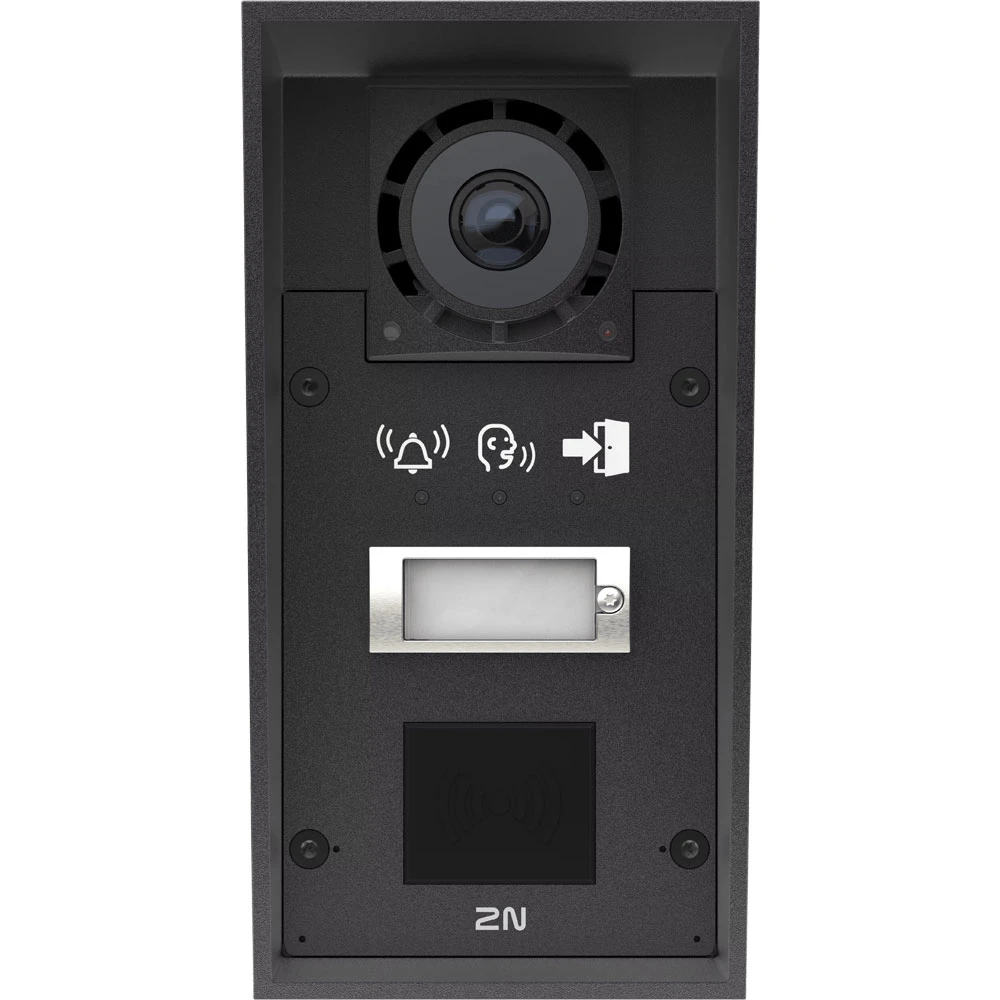

RFID Card ReaderSupported Frequencies:
125 kHz & 13.56 MHz (multifrequency)
Supported card types: 125 kHz:
EM4xxx, HID Prox (SE compatible version)
13.56 MHz standard (9151024, 9151025):
ISO14443A, PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (My2N app) reads UID (CSN) and secured MIFARE® DESFire® EV2/EV3 cards using 2N PICard technology
13.56 MHz HID SE compatible (9151024-S, 9151025-S):
ISO14443A, PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (My2N app), HID SE (Seos, iClass SE, MIFARE SE) reads secured MIFARE® DESFire® EV2/EV3 cards using 2N PICard technology reads PACs ID (HID iClass cards with SIO object)

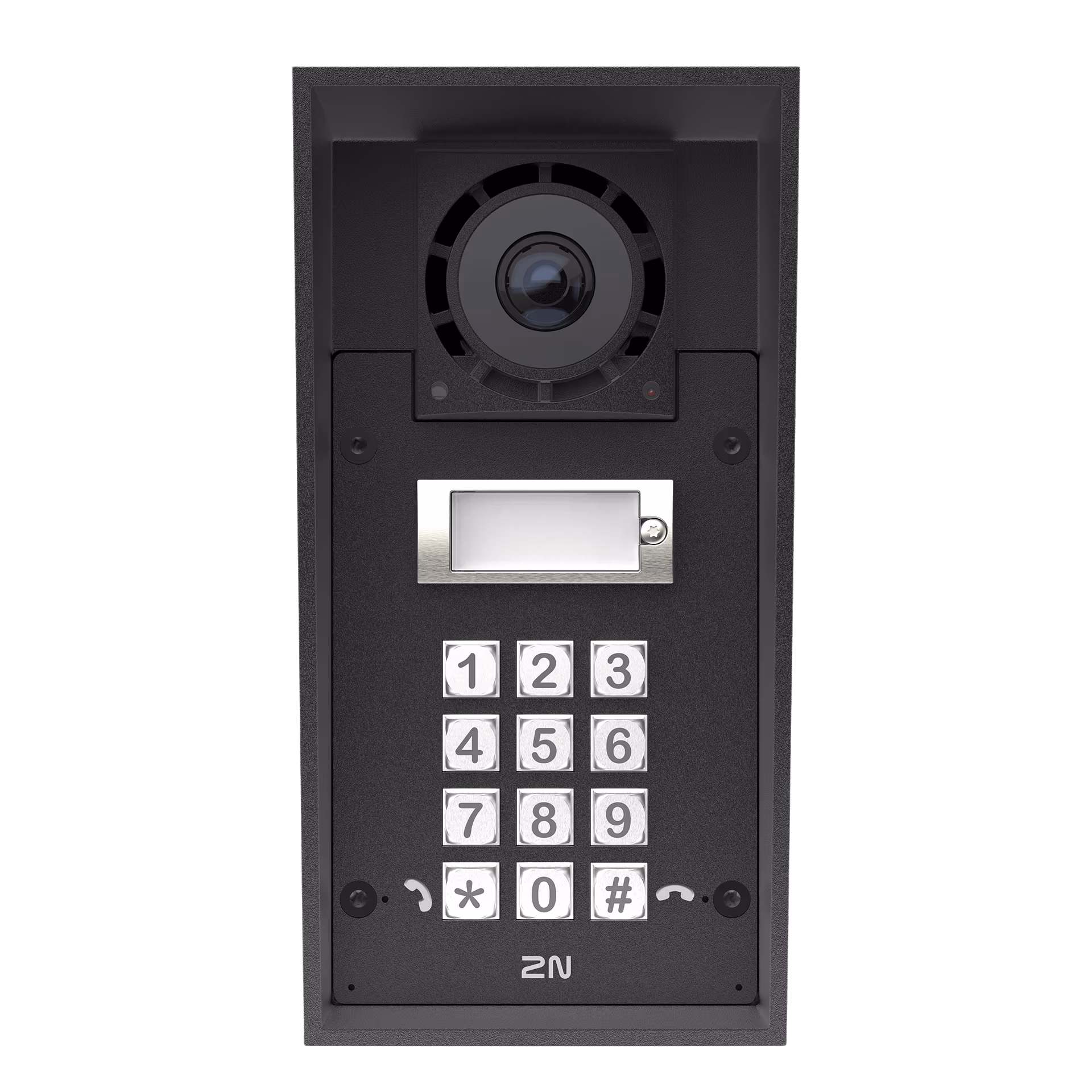

KeypadTechnology: mechanical keypad
Mechanical PropertiesMaterial: aluminium (ADC12) with chromating Surtec 650
Surface treatment: powder coating
Buttons: 1, 2, or 4 transparent backlit buttons
Operating temperature: -30°C to +55°C
Storage temperature: -40°C to +70°C
Operating relative humidity: 10 to 95% (non-condensing)
Maximum altitude: 2000 m a.s.l.
Weight: 2000g
Cover Rating: IP69, IK10 body (EN 62262:2019), IK08 camera, front panel (EN 62262:2019)
DimensionsSurface mounted: 109 (W) x 217 (H) x 83 (D)mm
Flush mounted: 135 (W) x 244 (H) x 12 (D)mm
Flush mounting box for brick: 131 (W) x 222 (H) x 82 (D)mm
Flush mounting box for plasterboard: 128 (W) x 239 (H) x 55 (D)mm
